Optical Amplification Fiberhome Fonst3000 , Fiber Optic Transmitter 1% Split Ratio

Product Categories

Guangdong Global Telecommunication Technology Co., Ltd.

Contact Now

Brand Name : Fiberhome

Model Number : FONST 3000 OA

Certification : ISO9001

Place of Origin : China

MOQ : 1 pc

Price : To be negotiated

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 units

Delivery Time : 2-4 working week

Packaging Details : Wooden Carton, Export Carton

Type : Optical Amplification Card

Dimensions (H × W) (mm) : 368 × 30 /368 × 60

Net Weight (kg) : 1.2/1.5

Power Consumption : 20 w

Contact Now

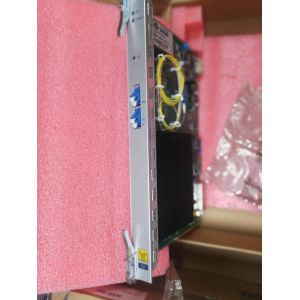

Optical Amplification Fiberhome Fonst3000 , Fiber Optic Transmitter 1% Split Ratio

Overview

Item	Unit	Specification		Remark
Optical wavelength range	nm	1528 to 1568		-
Saturated output optical power	dBm	21	24	-
Target gain	dB	18,20,23,25, 27,30,33	18,20,23, 25,27,30, 33	-
Gain flatness	dB	≤ 1.5		25°C
NF (noise figure)	dB	≤ 5.5		-
DGV	dB/dB	≤ 3		-
Output power (APR)	dBm	-1 ± 0.5		-
Output power with no input power	dBm	6 ± 0.5		-
Input power monitoring range	dBm	-25 to 3		-
Output power monitoring range	dBm	-10 to 22
Split ratio at the output power monitoring port	-	1%	0.5%
Power monitoring accuracy	dB	±0.5
Optical power overshoot (at least two
channels with output power no less than 7 dBm)	dB	≤ 3
Nominal gain error range	dB	±0.5
Error range of saturated output optical power	dB	0.5
EVOA attenuation range	dBm	1 to 25

Mechanical Parameters

Card	Panel Dimensions (H × W) (mm)	Net Weight (kg)
OA	368 × 30 / 368 × 60	1.2/ 1.5

Power Consumption

Card	Maximum Power Consumption (W)
OA	20
